High-voltage Switch-disconnector

High-voltage Switch-disconnector
High-voltage Switch-disconnector
Matching handle
GN-3.6 switch-disconnector
GN-3.6 switch-disconnector
Matching handle
GN-3.6/S200-2

GN-3.6/S200-2
Type
Rated vltage
V
Rated?current??
A
Rated short-time withstand current
kA?
Rated peak withstand current
kA
Rated duration of short-circuit
s

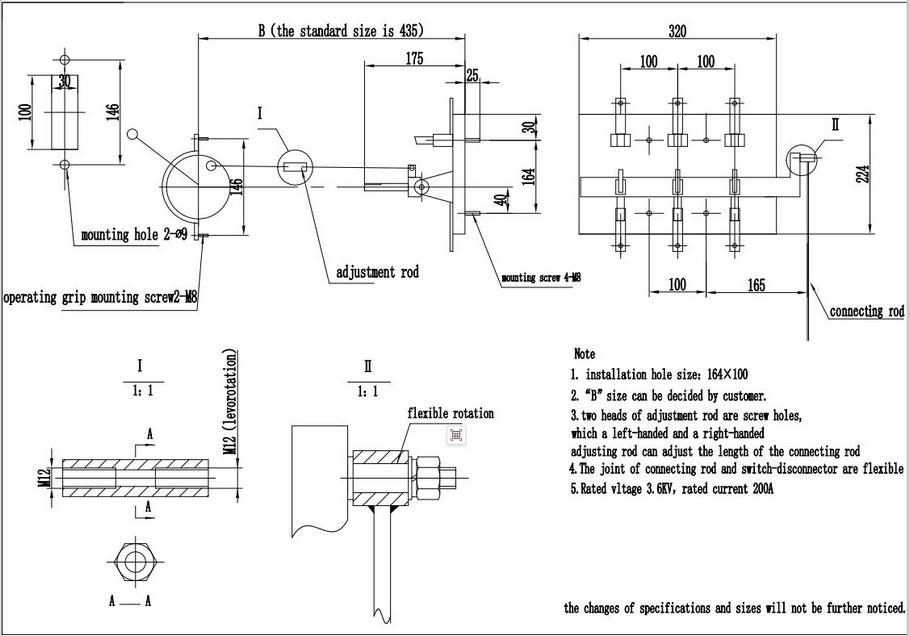

Outline dimension
mm
Installation dimension
mm
Weight
kg
Matching handle
GN-3.6/S200-2
3600
200
2
5
2
320*224*175
184*100
7.5
HD12-200
